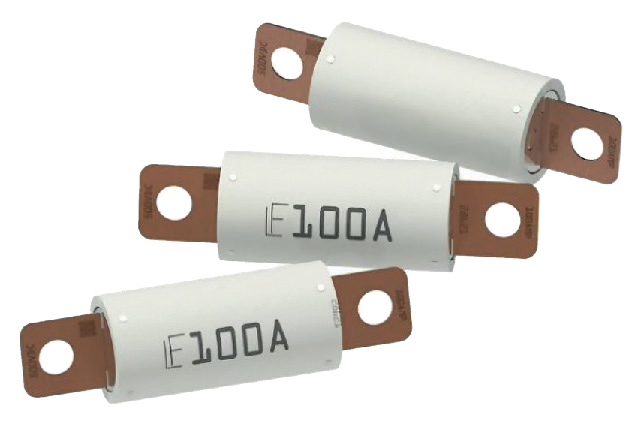

HV FUSES 500V 10/20/30/38EV SERIES

1. Rated current:
   – 10A, 15A, 20A, 30A, 40A, 50A
   – 60A, 70A, 80A, 100A, 125A
   – 150A, 175A, 200A, 225A, 250A, 300A
   – 300A, 350A, 400A, 450A, 500A, and 600A
2. Rated voltage: 500VDC
3. Breaking capacity: 20kA@500VDC – 30kA@500VDC
4. Operating temperature: -40°C to +125°C
5. Overload: 135% Ir, 200% Ir, 300% Ir, and 500% Ir
6. Insulation resistance (OSR): >1MΩ

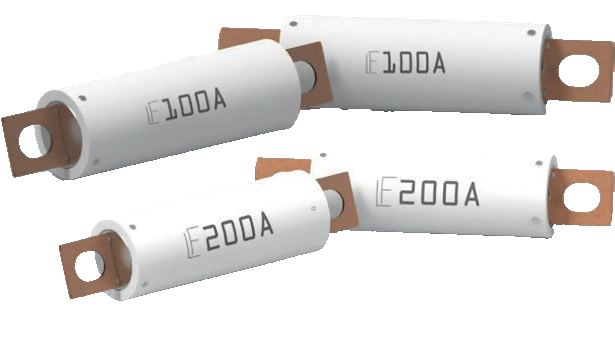

1. Rated current:
   – 70A – 125A
   – 150A – 225A
   – 250A – 600A
2. Rated voltage: 1000VDC
3. Breaking capacity: 30kA@1000VDC
4. Operating temperature: -40°C to +125°C
5. Overload: 135%, 150%, 200%, 300%, and 500% Ir
6. Insulation resistance (OSR): >2MΩ
