Backshells and Junctions


BACKSHELL

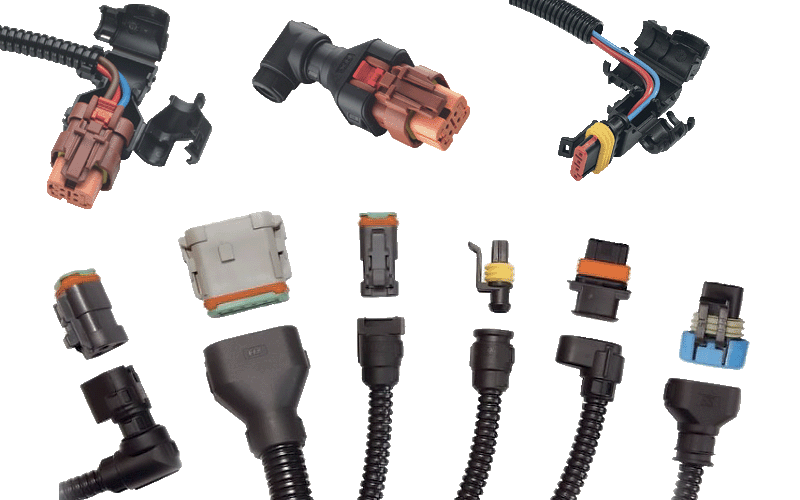

BACKSHELL

  1. High resistance thanks to inserts that ensure correct conduit insertion and prevent it from coming loose
  2. Made of modified PA6 material
  3. Operating temperature range: -40°C to +120°C, also available for high-temperature applications
  4. Internal label indicating the conduit size
  5. Straight or 90° elbow versions: compact design ideal for use in limited spaces, allowing 360° cable rotation
  6. Enhance the connector’s IP protection against mechanical abrasion, high-pressure water jets, excessive cable strain, and chemical washing
  7. Isolate the cable-to-connector connection from movement-related risks, preventing disconnection or damage to terminals
  8. Built-in locking clips reduce accidental opening of the backshell and help prevent injury during assembly and use
  9. Compatible with both closed and open conduits

Compatible with the following connectors:

  1. AMPHENOL AT Series
  2. TE Connectivity (DEUTSCH)
  3. AMPSEAL
  4. APTIV
  5. BOSCH
  6. MOLEX
  7. KOSTAL
  8. APTIV/DELPHI
  9. FCI
  10. SUMITOMO

DERIVAZIONI

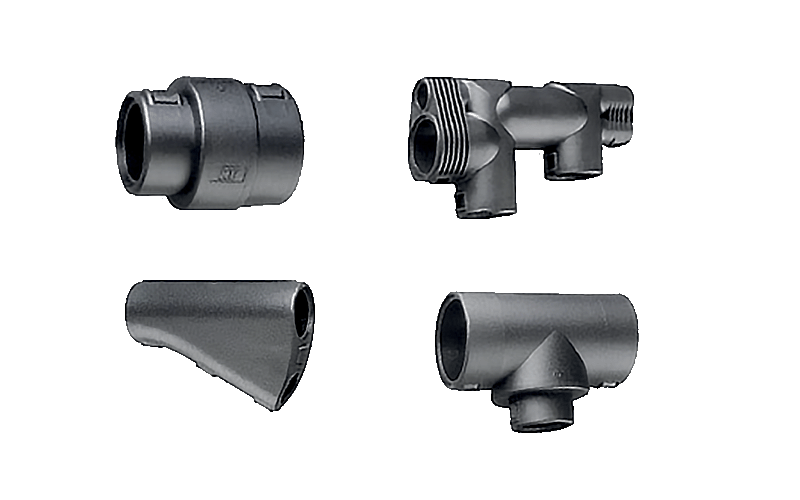

JUNCTIONS

  1. Compact design
  2. High mechanical strength
  3. Durable and resistant polyamide 6
  4. Operating temperature range: -40°C to +120°C
  5. UV resistant
  6. Ingress protection rating: IP40
  7. Self-extinguishing
  8. Low smoke toxicity and halogen-free
  9. Also available in XTemp version

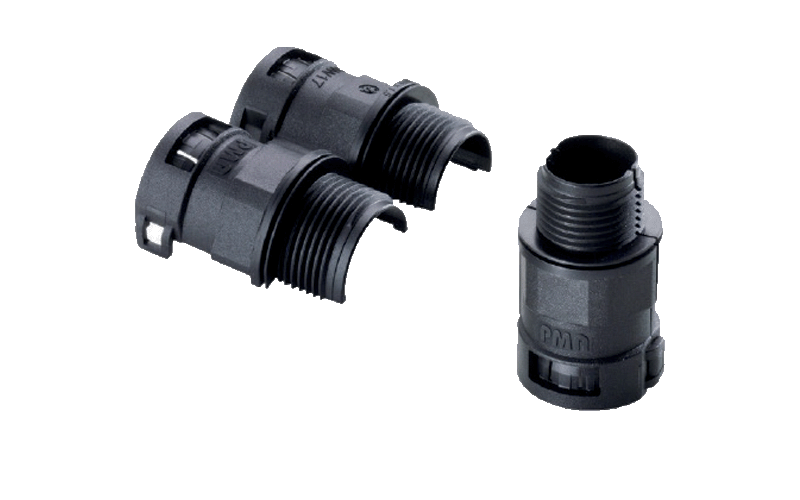

PMA PLASTIC INDUSTRIAL FITTINGS

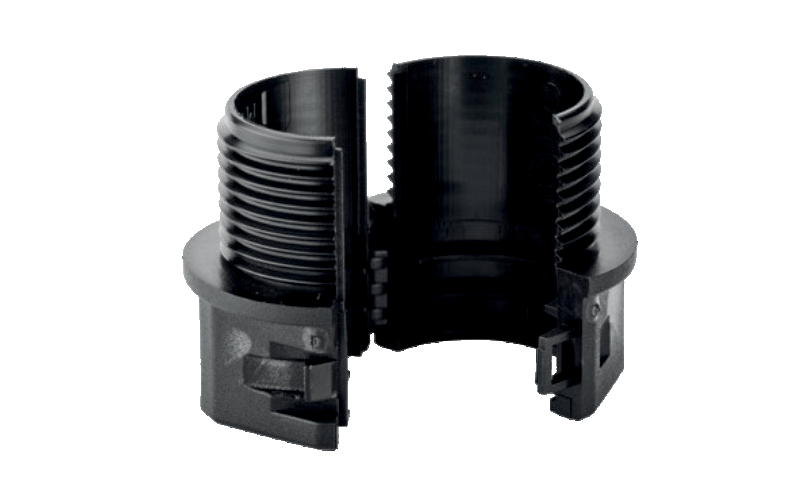

PMA DIVISIBLE

Reopenable fitting, ideal for retrofit applications. Ingress protection rating IP54.


RACCORDO PMA

RACCODO PMA

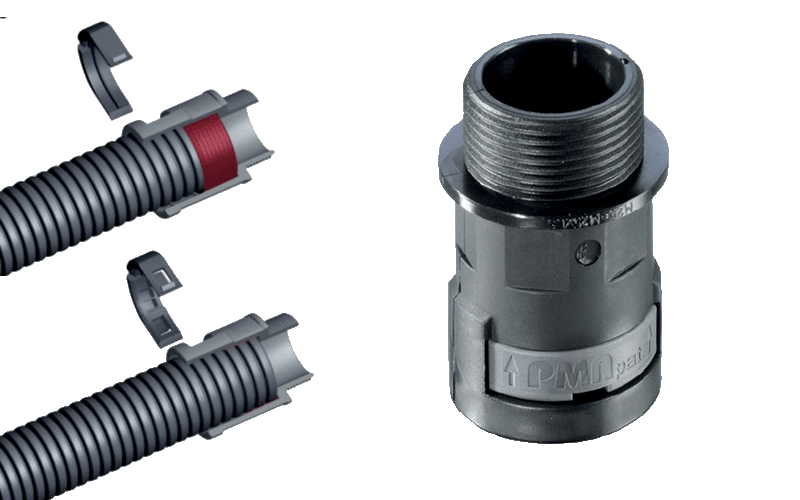

PMAFIX

Fitting with universal safety clip for quick “push-in” assembly. Ingress protection rating IP66-68.


RACCORDO PMA
